Meshに挑戦(3)

Meshに挑戦 (3)

数年遅れのMeshネタ第3回はBlenderでUVmapとテクスチャの編集です。
UVmapとは私なりの理解だと、メッシュのこの辺りにテクスチャのこの辺りを割り当てると言ったメッシュとテクスチャの位置的な関連性を示すもののようです。

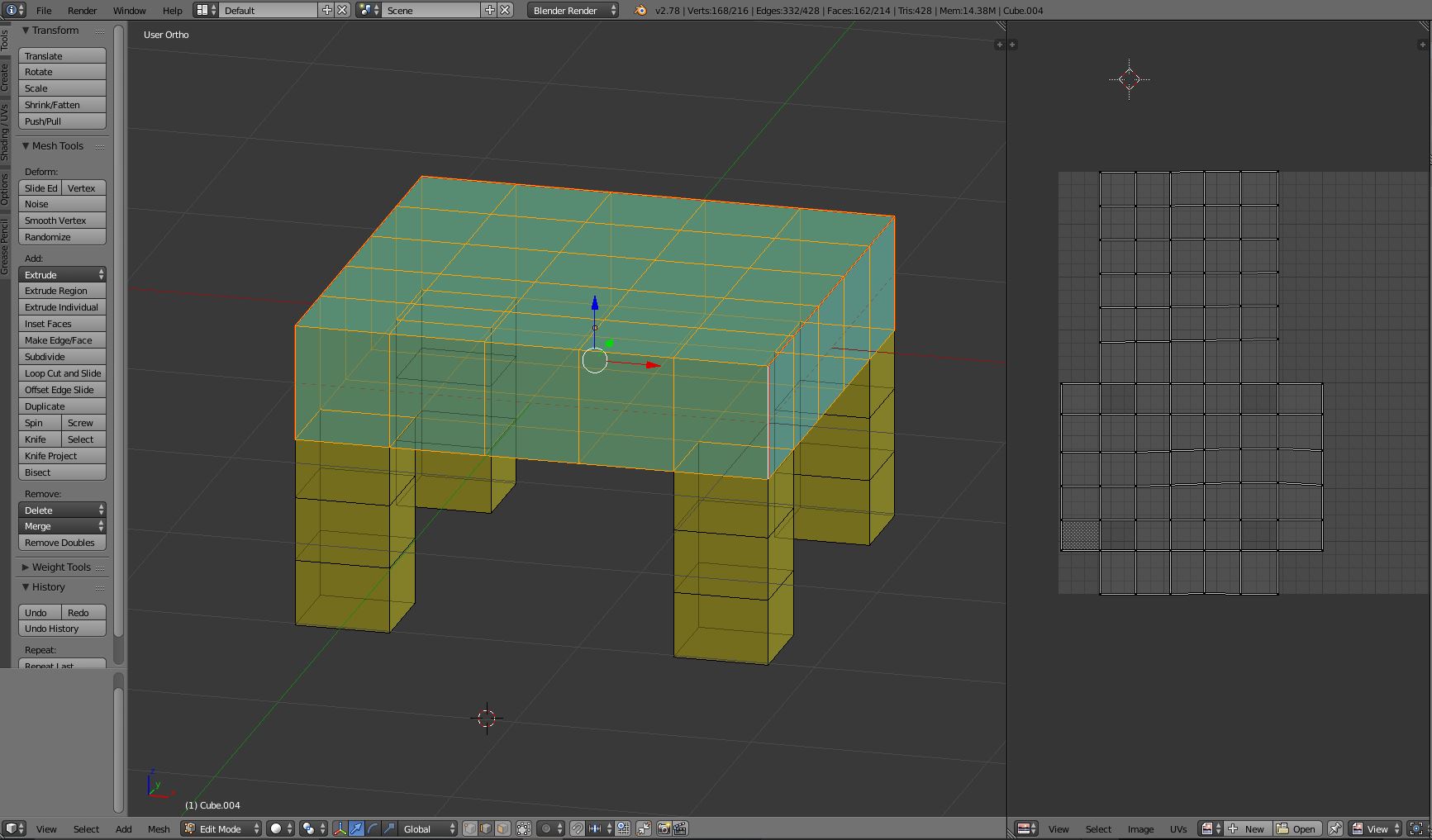

まず、Blender上で、対象オブジェの天板マテリアルを割り当てたメッシュに切れ込み(Mark seam: メッシュ状の赤い線)を入れて2次元に展開します。なんというか、厚紙で作ったサイコロを切れ目入れて延ばす要領です。
展開したUVmapは512x512のpngイメージとしてエクスポートしておきます。

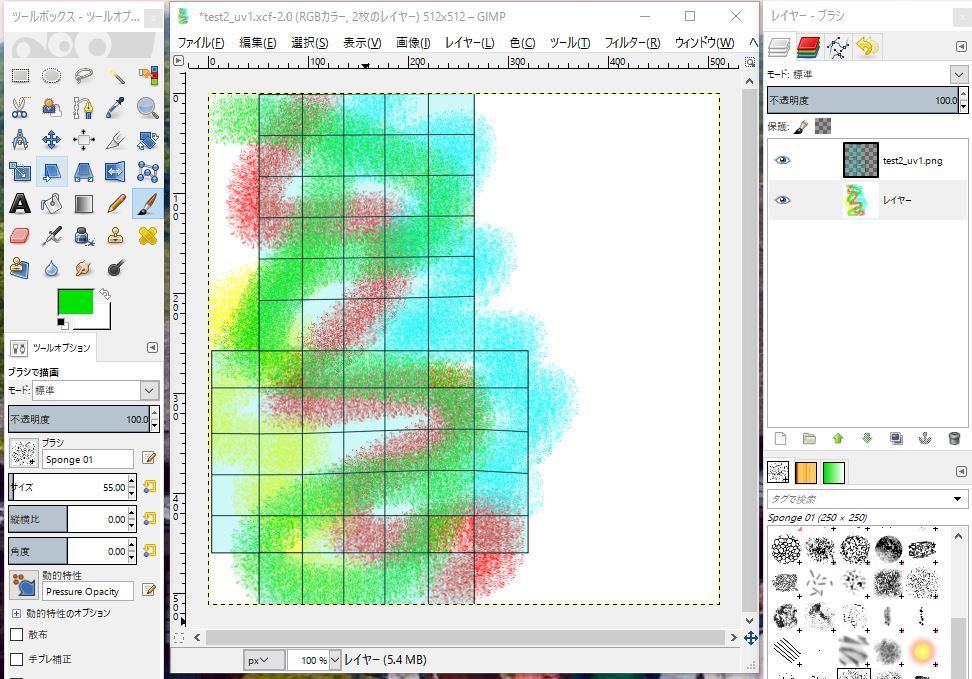

続いて、エクスポートしたUVmapイメージをgimpに取り込みます。UVmapのイメージはメッシュを示す線以外は透明なので、お絵描き用のレイヤを下に1個重ねて罫線のように使用します。 お絵描き用レイヤに絵を描いたら(ひどい絵だw)、そのレイヤをpngで保存しておきます。



再びBlenderに戻って、gimpで描いた絵をUVmapにロードして貼り付けます。



ここまで出来たらBlender内でオブジェクトをコピーし、低LOD用にメッシュをダイエットしたオブジェクトを作成しておきます。



secondlife viewerのアップローダでBlenderからエクスポートしたcollada形式のデータを、低LOD版と合わせてテクスチャ付きでアップロードします。



で~きた♪

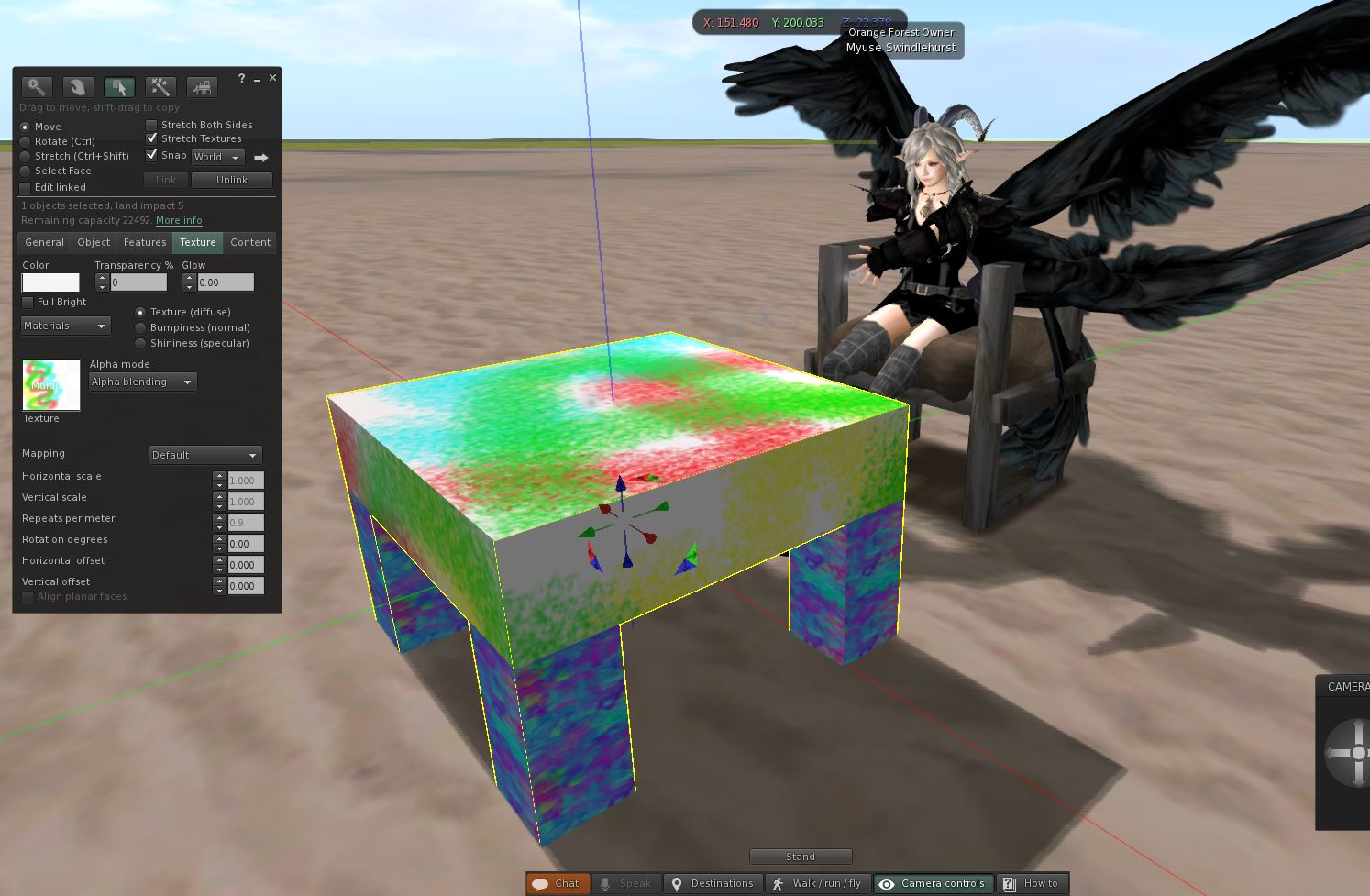

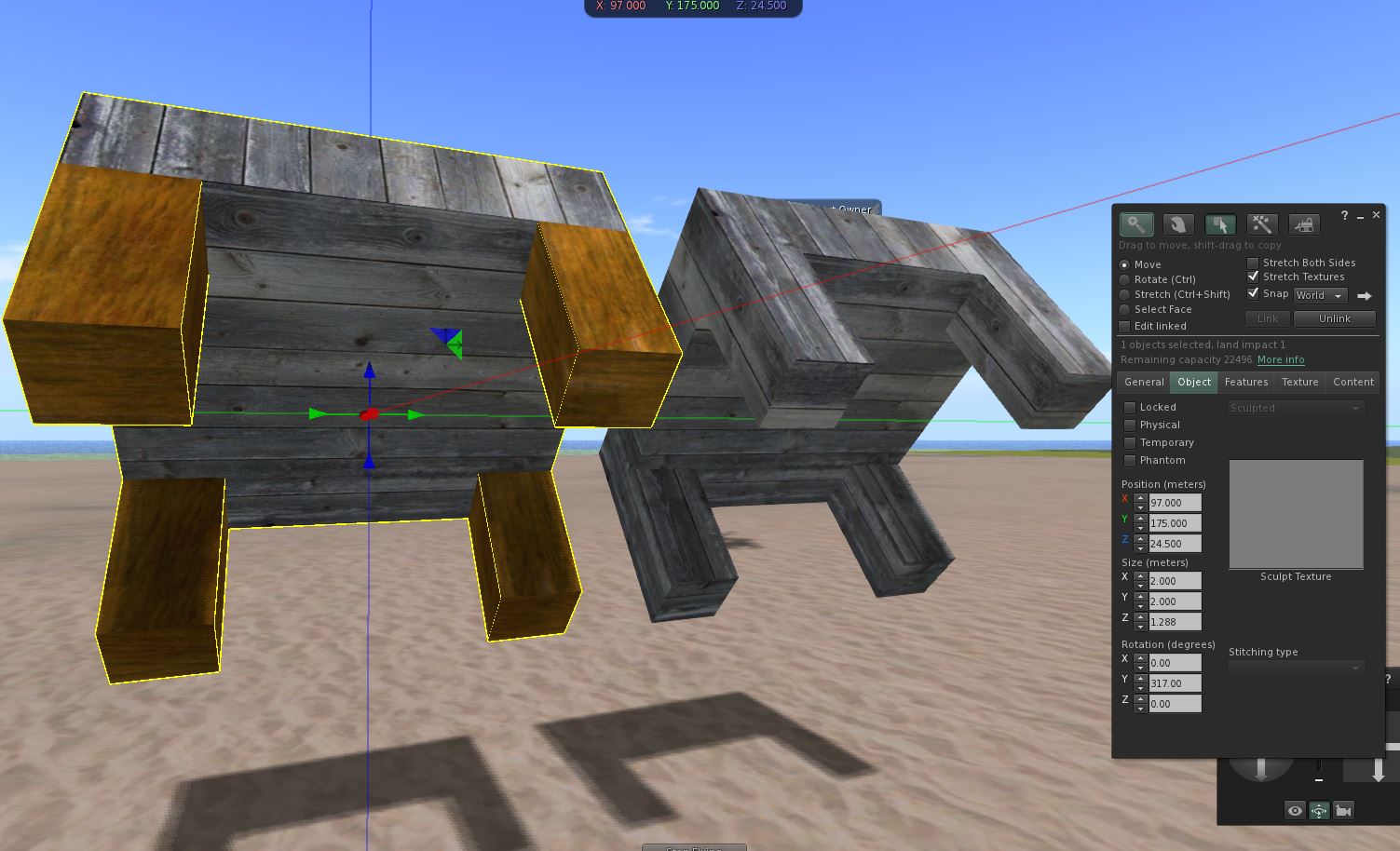

脚は別マテリアルでUVmap作成はさぼったので、In-worldで適当なテクスチャを貼り付けました。
PR

Meshに挑戦 (2)

Meshに挑戦(2)

こんばんわー。先日のMeshちゃぶ台の続きです。


あーあ、中に入れないよぅ

私は以前sculpted prim作るのにBlender Ver2.4xを使用していましたが、今のVer2.7xとはユーザインタフェースが大きく異なる上に、sculpted primとmeshでは作成方法がだいぶ違っていてまだまだ戸惑ってます。本稿はただの日記のつもりでして、細かい操作方法はちょっと省略させて頂きますね ^^);;

Blender上でのmeshの操作はこちらのHPを参考にさせて頂いています。
CGRAD PROJECT. : Blender入門

まずはマテリアルをいじるとこから

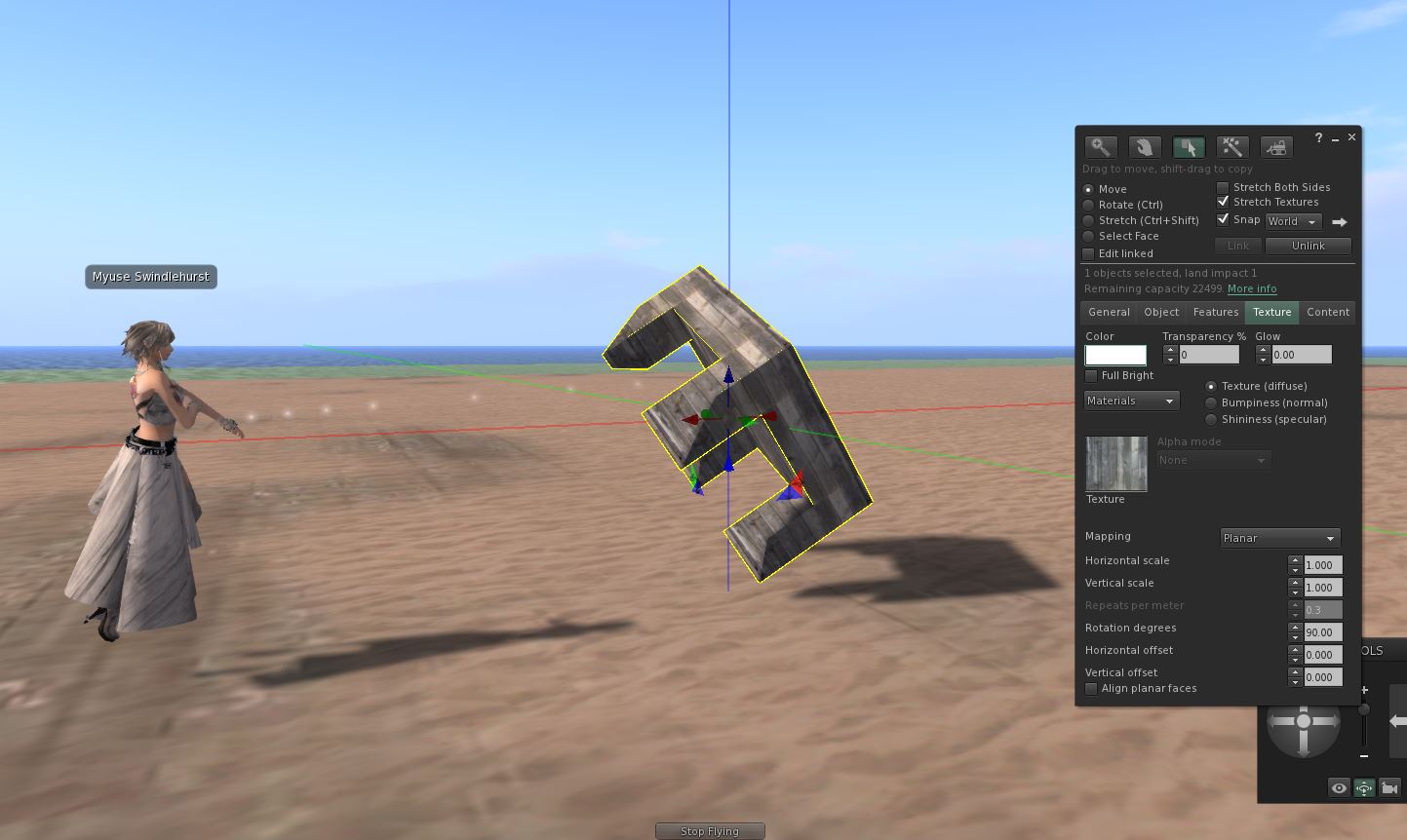

Blenderでちゃぶ台の天板と脚に別のマテリアルをアサインして、In-worldにアップロード



複数のマテリアルを設定したおかげで脚と天板に別々のテクスチャを貼り付けることができるようになりました。(最大8枚まで)

続いて LOD をなんとかしてみようと思います。LOD (Level Of Detail) とは、物体とカメラの距離の離れ加減に応じてオブジェクトを簡略表示させる設定です。適切にLODを設定すれば視点を離しても前回のようにちゃぶ台がトゲトゲしてしまう現象を回避できるはずです。

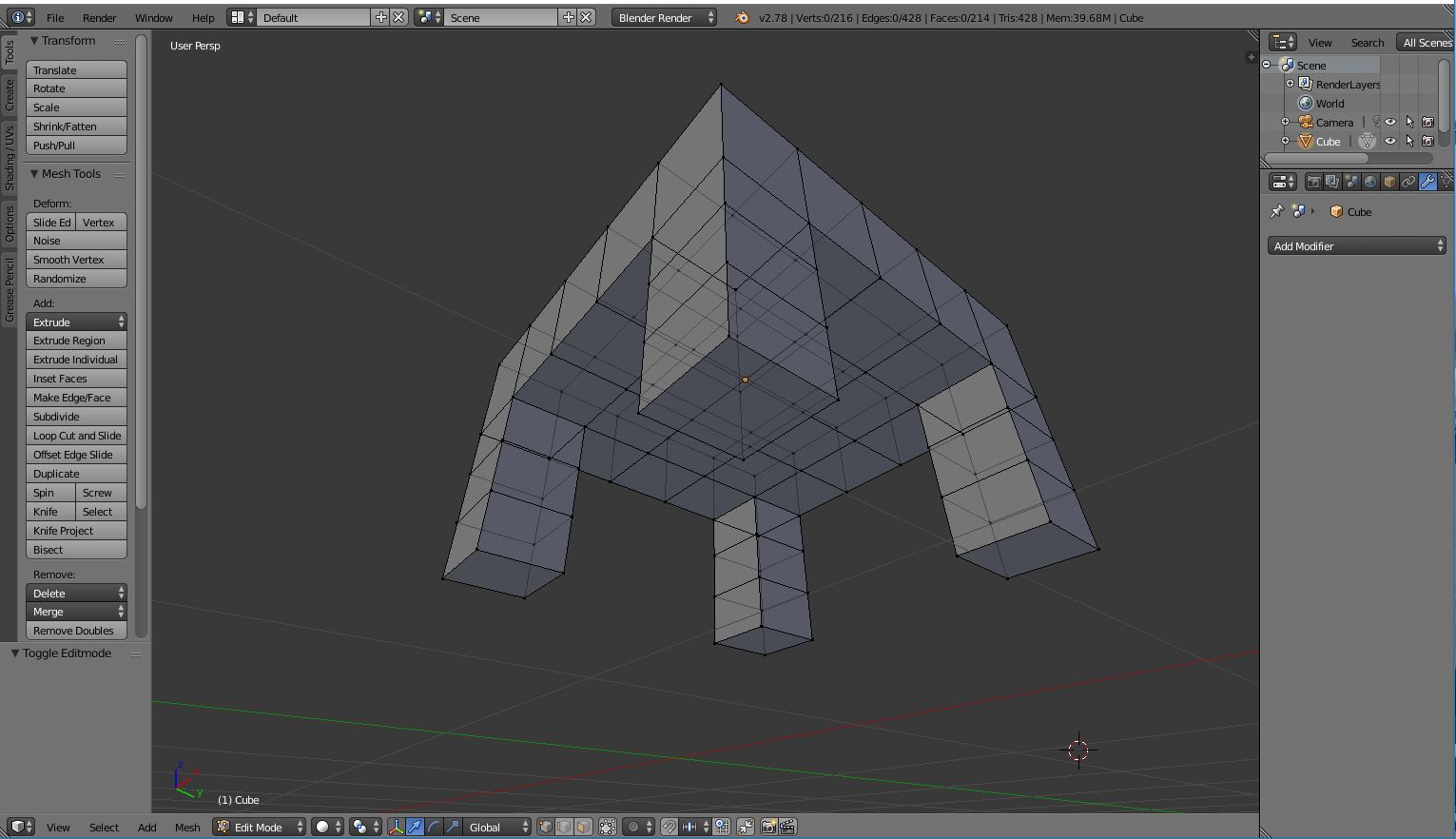

本来はBlenderのDecimate モディファイアを使ってmeshをダイエットするところなのですが、元々が単純すぎるせいなのか、モディファイヤ使うとぐちゃぐちゃになってしまったので、やむを得ず人手でダイエットです。



ダイエットしたちゃぶ台をLODの2段階目としてIn-worldにアップしました。



手前はLODをアップローダの自動設定にお任せしたもの。奥はLODを自前で設定したもの。奥のちゃぶ台は離れているにも関わらずちゃぶ台の変形が抑えられました。やった~

今日のところはここまでです。
ではでは!

English Content Summary

Thank you for visiting Orange Forest Blog site.
This page collects the articles written in English of this Blog.

All of the blog entry which is written in English is shown in this page. The future English articles will be added to this page.
Please contact to Myuse Swindlehurst if you have question, request or claim and deliver problems. ;-)

How to buy Orange Forest products

Orange Forest products is sold in Orange Forest in.world store or SLMarketplace online shop. Please use an online shop when you gift the Orange Forest's product to the friend.

SLMarketplace Online Shop

ChangeLog

Feb 12th, 2017 Added In-world store information
Oct 28th, 2012 Added Sandalphon, Changed price for Mother Airship
May 12th, 2012 Added Marine Lmap, TIBIEEDER 213S and shop notifications.
May 06th, 2011 Added Brick Warehouse and Others
Dec 19th, 2010 Added TIBIEEDER M-213 Series

Product Information

Announcements, Etc



Released Products

New Space Ship - Sandalphon


Blog / Video(Beta)
Sandalphon is a fully functional vehicle which has an ability of crossing SIMs, it also has a large residential space. It flies to the sky with many passenger by rocket power. It can be hovered in the air by changing the angle of the main rocket engine of both sides.


O.F TIBIEEDER Model-231 Standard Editions


Blog / Video
TIBIEEDER Model-213 Standard Edition is high detailed and multiple seated sky vehicle. This TIBIEEDER made the design simplified based on the M-213 Devil Edition.


Marine Lamp


Blog
This sculpted lamp has a realistic body and emits the wonderful lighting particles. It also has function of local light and it can lighten your room or your garden.


O.F Brick Warehouse with Shutter & Double Hinged Roof


Blog / Video
Orange Forest Brick Warehouse is a large structure with realistic brick texture and includes the several comfortable mechanism (Rezzer, Shutter, Double Hinged Roof). Orange Forest uses this Brick Warehouse as a Main Shop and display aircraft and amusement ride. Please visit. ^_^)/
1st of all, Please see video that covers all function of this Brick Warehouse.


TIBIEEDER Model-213 Devil Editions


Blog / Video(BDE) / Video(SDE)
This is the flagship model of TIBIEEDER series. Roof hatch can open and close automatically or manually. Devil's tail can attach to avatar automatically. Click this image and see video of this TIBIEEDER!!


Floating Isle with Waterfall


Blog
Floating Isle (浮島) with Waterfall is a fantastic sky-platform with 4 sits, fountain, waterfall, water sounds and particle emitter. It has 2 types of style (Rock/Snow) which can switch by dialog menu. 2 patterns of particle (Butterfly/Snowflake) which relates with the style can emit around the isle.


O.F Free Fall M-204 with Mini-Sky Yard


Blog / Video
Have you ever experienced the Free Fall in the SecondLife?
Orange Forest Free Fall is an amusement ride which flies vertically up to 700m and fall down unexpectedly with whirling x-y-z axis.
First of all, please see the YouTube video.


O.F Brick Garage 2 Colors Pack


Blog / Video
"O.F Brick Garage" is multi-purpose structure which is suitable for a garage or workshop or commercial use. The shutter, the room lamp, the skylight, and the back door are installed in the garage of an antique brick.


O.F TIBIEEDER Model 203 Angel Editions



Blog / Video(WAE) / Video(RAE)
The Dark or The Light ?
Orange Forest TIBIEEDER M-203 has the 3rd generation of full physical movement script for Orange Forest Speeder series. So you can enjoy the flight with the TIBIEEDER M-203 by the ripening mobility. TIBIEEDER M-203 also improved the design of the airframe and the design of the cockpit.
Orange Forest Speeder series are hovering style of aircraft like a helicopter. It always float in the air even if it stop. It is possible to select the speed from low to high freely. Therefore, even the beginner can easily control this. You can experience the flight by the TIBIEEDER M-203 demonstration machine at the Orange Forest shops.


O.F Dolphin Family (Ride / Furniture)


Blog
Cute sound, emits bubble dolphins
2 types of furniture and 1 type of vehicle exists.


O.F Missile Surf Ride (Freebie)


Blog / Video
This is not an weapon but airplanes. And this doesn't explode or damage others. "O.F missile surf" uses the latest version of O.F physical aircraft script engine which also supports the floating camera and dynamic physical property control. You can enjoy the dynamism of the sky by it's easy operation. Since it is made by 1 sculpted prim, "O.F missile surf" is very light load for SIM.


O.F Mother Airship Series


Blog
Large scale (45m), High detailed SF like airframe, Smoothly movable with un-physical movement script. It can also fly over the SIM's border with many passenger. Usable with the both of skybox and vehicle.


O.F Ukishima (Floating Island)


SLMarketplace
10m x 10m of drivable mini-skybox


O.F Speeder M-106 Series


Blog / Video
6-seats of hover skyship that has 9 colors of SKUs


Discontinued Products

O.F Marine Lamps (Obsoleted)


SLMarkeplace
Garden Light includes 2 colors (White/Gold)


O.F TIBIEEDER M-103 Series (Obsoleted)


Blog
How do you do when moving in the SIM or several SIMs with your friend wonderfully? O.F TIBIEEDER is a hovering style of aircraft like a helicopter. It always float in the air even if it stop. Thus you can control it very easily. The full functional DEMO displays at the Orange Forest shops, and you can drive it freely during 3 minutes.


Meshに挑戦 (1)

Meshに挑戦 (1)

こんばんわ
ちょ~今更ですが、メッシュに挑戦しました。

どーんw


アップロード経費節減のため、数年ぶりにβグリッドに侵入します。
あまりに久しぶりで服装やインベントリの中身は同期されてなくて数年前のままでした。お気に入りの羽根もなし><。サンドボックスにはすごいメッシュアバターのテストしている人がちらほらいました。

最近のビューアだと、ログイン画面でMe->Preferencesにて "Show grid selection at login" を設定してログイン先のグリッドを指定できるようにします。

Meshアップロードに先だって、βグリッド向けにリンデンのクイズ(Mesh tutorial)に答えておく必要があり、私の場合はこちら (SL wiki)からチュートリアルに飛びました。



最初のお題は「ちゃぶ台」w
blenderで適当にモデリングしてCollada形式でエクスポートします。マテリアル?UV?そこらへんはひとまず気にしない方向ですw

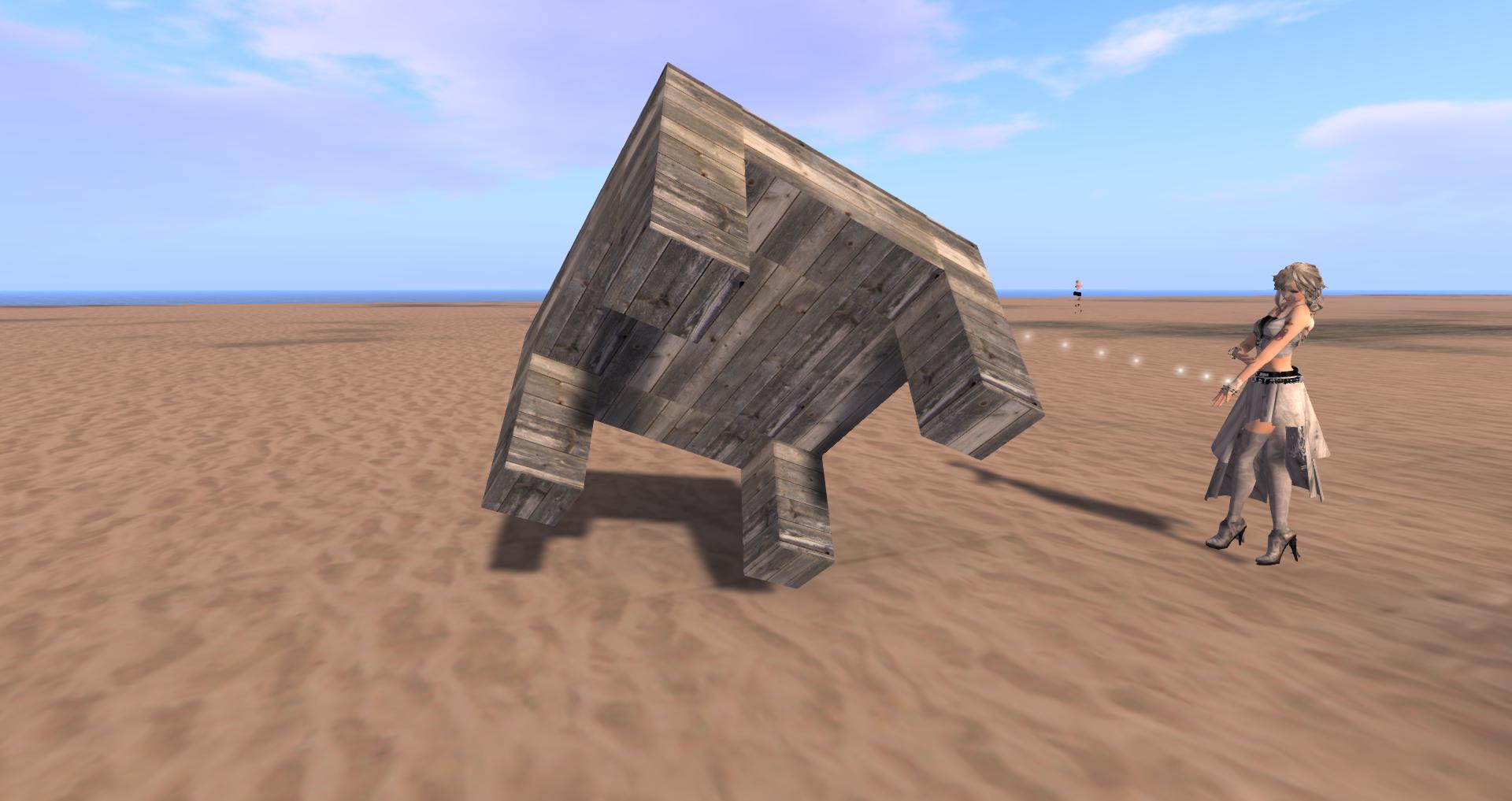

LODもなにも考慮してないので、ちょっと離れるとトゲトゲしてましたw
